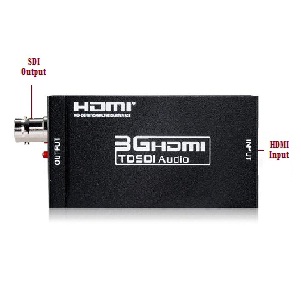

HDMI to SDI
Converter (Support SD-SDI / HD-SDI / 3G-SDI)
|
|
|
HDMI
to SDI Converter ini
merupakan Alat
yang digunakan untuk
mengubah input video
dari perangkat yang menggunakan HDMI
menjadi output SDI (serial digital interface)
untuk disambungkan ke monitor SDI.
SDI merupakan standar
transmisi video resolusi tinggi dengan menggunakan kabel
coaxial dengan kecepatan tinggi tanpa
mengurangi kualitas gambar.
Standar SDI yang umum dijumpai saat ini
adalah SD-SDI (dengan resolusi 480i/576i),
HD-SDI (dengan resolusi 720p/1080i) dan
3G-SDI (dengan resolusi Full HD 1080p).
Pada resolusi SD-SDI dapat tarik kabel
coaxial sampai 300 meter, HD-SDI sampai
200 meter, dan 3G-SDI sampai 100 meter. |
Feature:
- Auto detect resolution of HD-SDI, SD-SDI and
3G-SDI
- Plug and play;
- LED Indicator light
SPECIFICATION :
- Signal Inputs:
SDI Format ( HD-SDI, SD-SDI and
3G-SDI )
SDI date rate: 270Mb/s, 1.485Gb/s,
2.97Gb/s
Impedance : 75 ohm
- SDI input resolution :
SD 480i, 576i;
HD 720p@24Hz/25Hz/30Hz/50Hz/60Hz,
HD 1080i@50Hz/60Hz
HD 1080P@24Hz/25Hz/30Hz/50Hz/60Hz
- Recommended resolutions: 720P@50Hz/60Hz or
1080P@50Hz/60Hz
- Support deepcolor of 8bit, 10bit, 12bit
- Support 8 channel of 48K sampling rate digital audio
- SDI input support long coaxial cable ( RG59 Cable or its similiar products )
- HDMI Output Resolution:
720P/50Hz 720P/60Hz 1080i/50Hz
1080i/60Hz 1080P/ 24/ 25/ 30 /50 /60HZ
- Operating Temperature: 0° - 59° C
- Operating Humidity: 10% to 85% RH (no
condensation)
- Power Supply : DC Adapter
- Power consumption (Max) : 5W
- Weight : 200 g
Harga : Rp
900.000,- / Unit

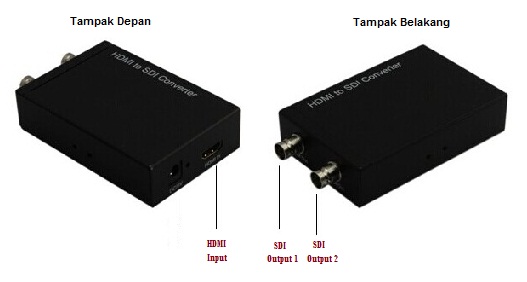

HDMI to SDI
Converter ( Dual-Output )
|
|
SDI to HDMI Converter ini
pada dasarnya memiliki 2 port SDI output
yang memungkinkan untuk
disambungkan ke 2 buah monitor yang memiliki input SDI.
|
Harga : Rp
1.400.000,- / Unit
|
|
|
[
